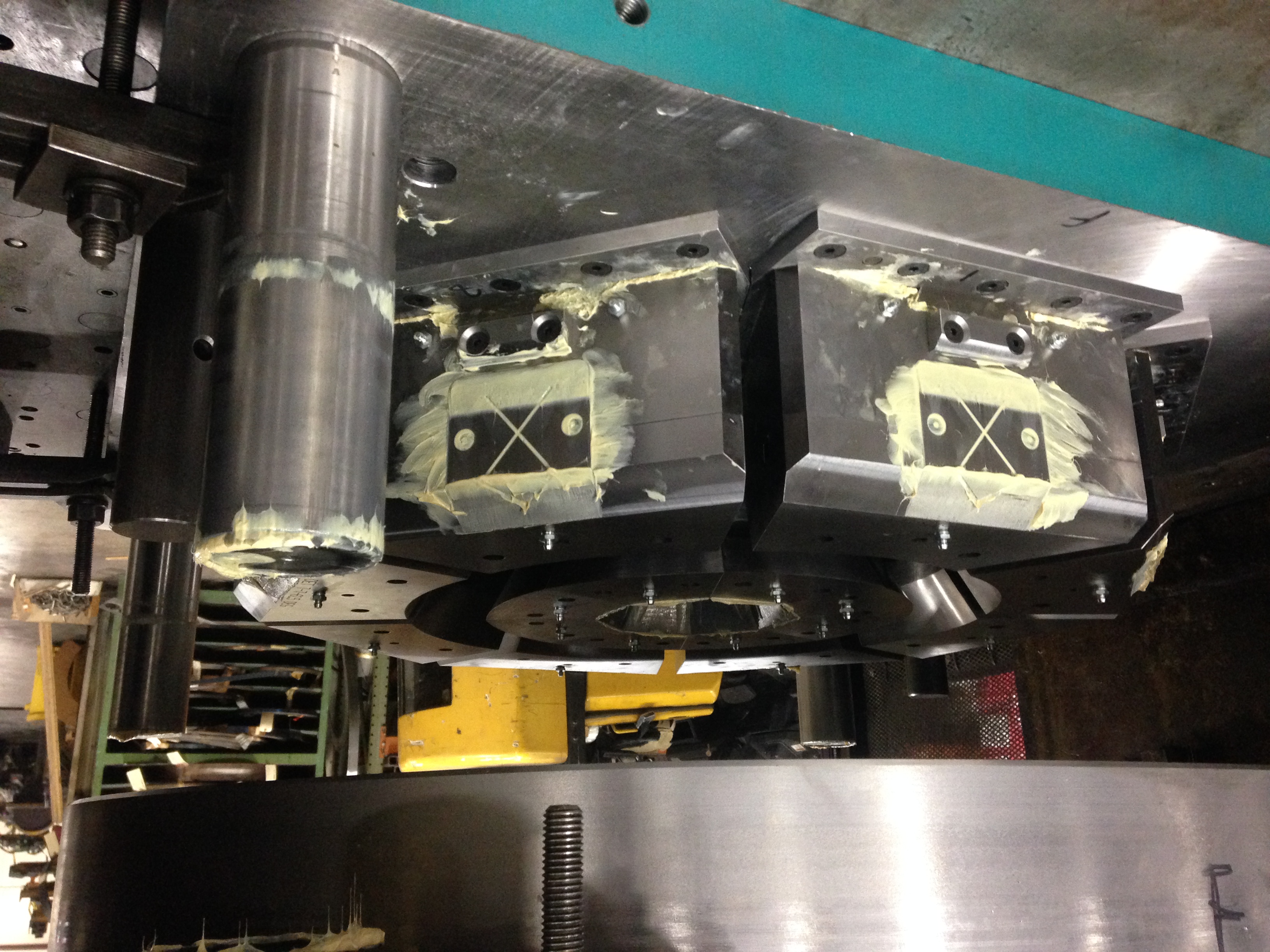

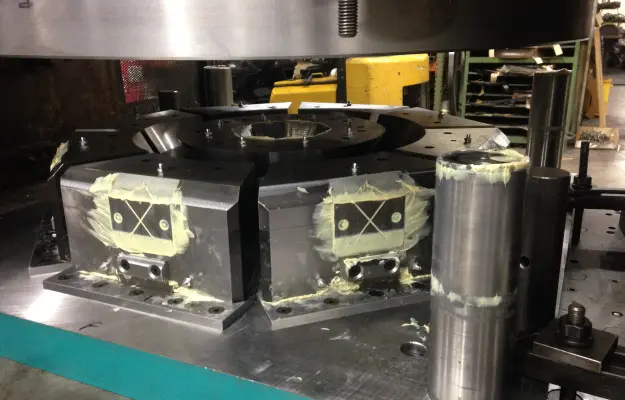

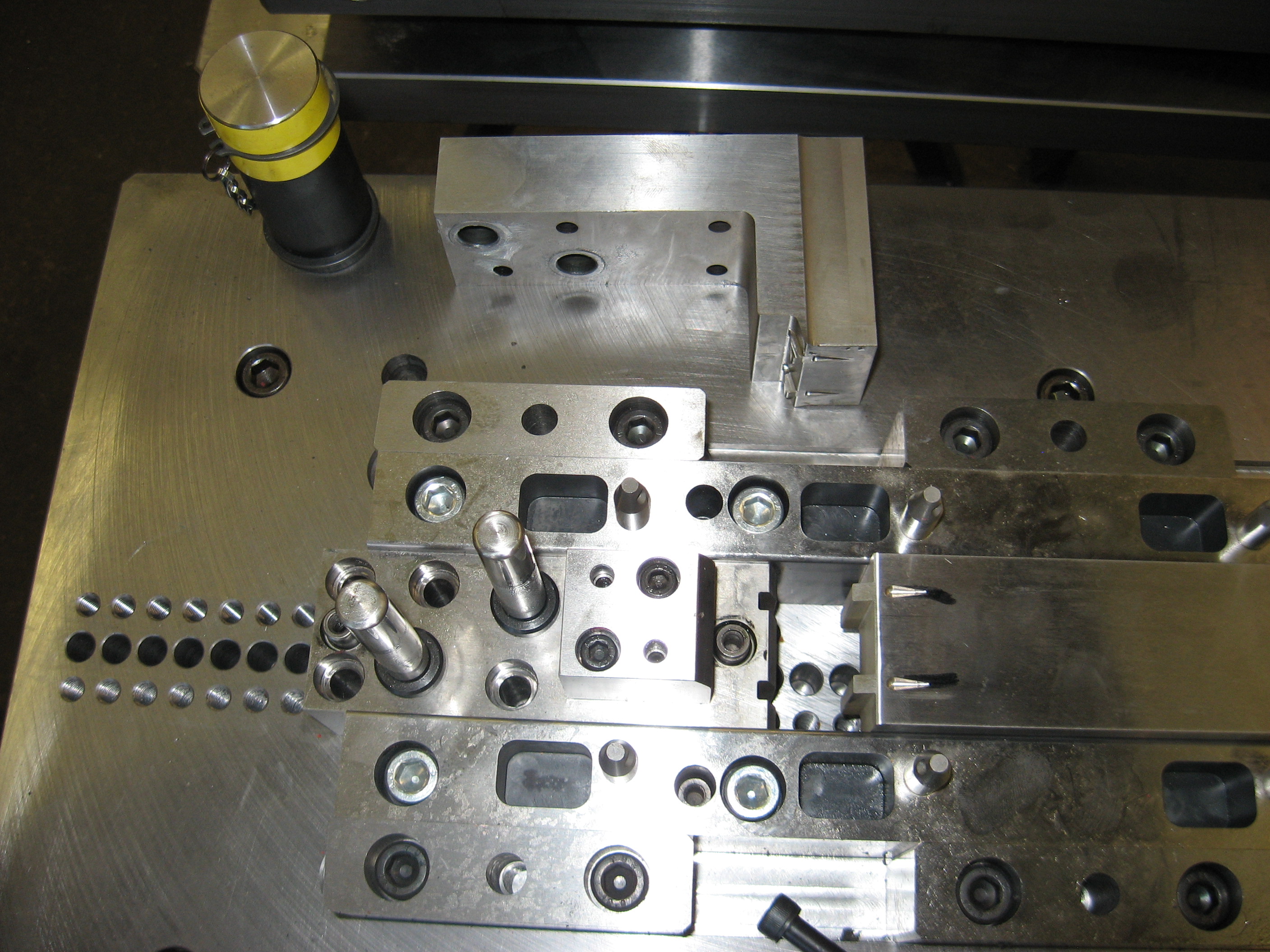

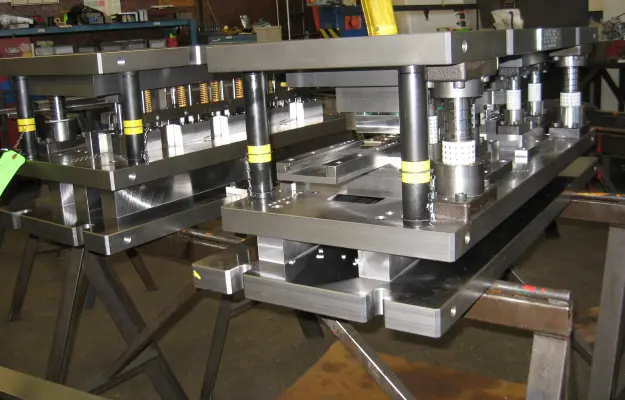

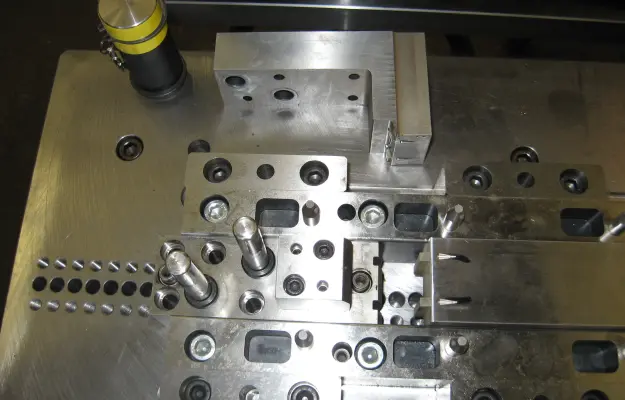

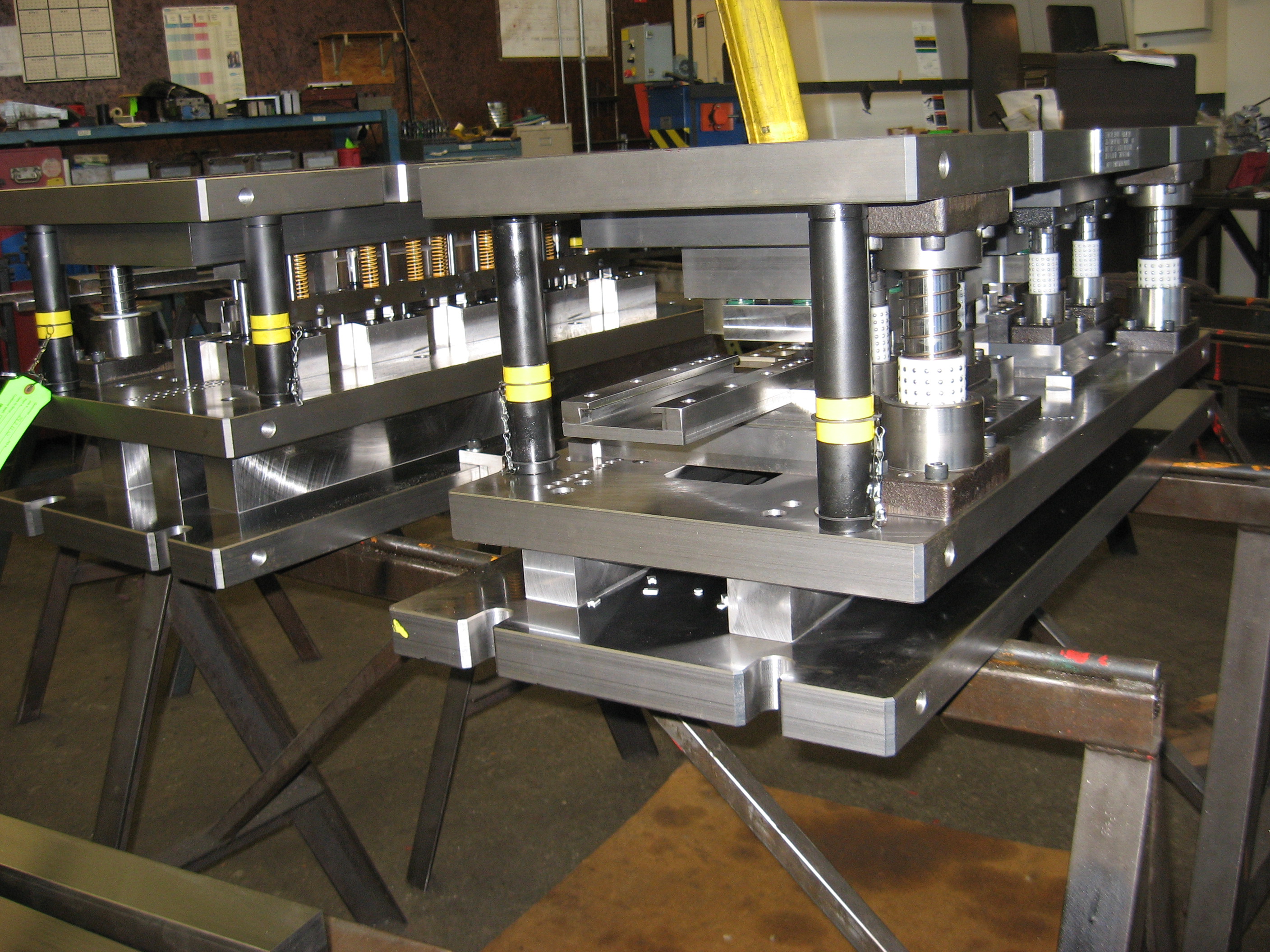

Our engineering team designs and builds everything from the basic punch die to the most complex progressive draw dies. Each die built is tested under real manufacturing conditions. Press capacities range from 5 to 300 tons. Each press is capable of running production stamping. We also engineer and manufacture tooling, including die consumables, replacement die components, emergency repairs, and complex fixtures.
Presses
Details
| Brand | Model | Tonnage | Bed Size | Comments |
|---|---|---|---|---|
| Verson | C2-300-72-42T | 300 Ton | 42"x72" | Mechanical Press |
| Verson | 7B90 | 300 Ton | 65" x 96" | Mechanical Press |
| Clearing | SD-2160-72 | 150 Ton | 49" x 72" | Mechanical Press |
| Minster | 100 Ton | 28" x 36 1/2" | Mechanical Press | |
| Clifton | 300 Ton | 30" x 28" | Hydraulic Press | |
| Hannifin | 200 Ton | 30" x 46" | Hydraulic Press | |
| Clifton | 100 Ton | 20" x 30" | Hydraulic Press | |
| Bliss | 90 Ton | 18" x 39" | Mechanical w/ Dallas Feeder | |
| USI | 75 | 75 Ton | 36" x 25" | Mechanical Press |
| Rouiselle | 60 Ton | 18" x 30" | Mechanical w/ Air Feeder |
Wire EDMS
From small parts to large parts, our EDM services give us great precision in cutting intricate extrusion dies, die sections, and detail gears, while offering an affordable solution when low counts or high accuracy is required.
Details
| Brand | Model | Axis | X-Axis Travel | Y-Axis Travel | Z-Axis Travel | Comments |
|---|---|---|---|---|---|---|
| Agie Charmilles |
AC Progress | 4 | 19.75" | 13.75" | 16.50" | |
| Agie Charmilles |
AC Progress VP3 |
4 | 13.75" | 8.66" | 8.66" | |
| Leblond Makino |
EC3040 | 4 | 12" | 15" | 5" | 2 machines |
Types of Die
- Progressive
- Compound
- Blanking
- Hole Pierce
- CAM Pierce
- Deep Draw
- Hand Load
- Transfer Press
- Press Brake
Special Machine Design and Assembly
Electrical Services
- PLC and HMI programming (Allen Bradley, Mitsubishi, and Siemens)
- Robotic cell design and build
- Electrical panel design and fabrication
- AC, DC, and Servo drive design and installation
- Retrofit obsolete controls and drive systems
- Field service and troubleshooting
Mechanical Services
- Turn key custom machine design and fabrication
- On-site reverse engineering and repair
- Emergency repair
- End of arm tooling
- Machine assembly
